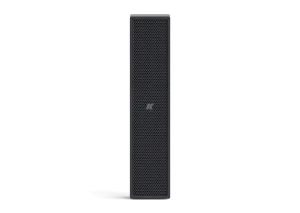

Lyzard-KZ14 I – Ótrúlegt line-array hljóð úr hátalara sem sést varla

K-array Lyzard KZ14 I er ultra-mini line-array hátalari hannaður fyrir verkefni þar sem krafist er hágæða hljóðs án þess að hátalarinn sjálfur dragi athygli að sér. Hann er minnsti line-array hátalarinn í Lyzard línunni og sameinar einstaklega nett form, premium efnisval og skýra hljóðdreifingu sem fellur fullkomlega inn í nútíma arkitektúr.

Með fjórum 0.5” neodymium driverum og PAT® (Pure Array Technology) skilar KZ14 I hreinu, skýru og mjög intelligible hljóði með jafnri dreifingu — þrátt fyrir að vera aðeins um 10 cm á hæð.

Helstu tækniupplýsingar

  • 4 × 0.5” long-excursion neodymium drivers
  • Frequency Response: 500Hz – 18kHz (-6dB)
  • Maximum SPL: 98 dB Peak
  • Coverage: 140° Horizontal × 40° Vertical
  • Nominal Impedance: 16Ω
  • Power Handling: 15W
  • 2-pole Euroblock connector
  • Milled aluminum enclosure
  • Magnetic front grille
  • On-wall eða recessed installation möguleiki

Stærð & bygging

  • 100 × 22 × 11 mm
  • Þyngd: aðeins 59 g

Fáanlegur í:

  • svörtu
  • hvítu
  • custom RAL litum
  • polished aluminium
  • rose gold
  • antique gold
  • 24K gold finish

Háþróuð K-array tækni

PAT® – Pure Array Technology

Lyzard KZ14 I er minnsti hátalarinn í Lyzard línunni sem notar PAT® (Pure Array Technology) frá K-array.

PAT® hjálpar til við að:

  • skila jafnari coverage frá framenda til aftasta hlustunarsvæðis
  • bæta intelligibility
  • minnka óæskilega dreifingu
  • skila hreinni og mjög náttúrulegri hljóðmynd

Ultra-Mini Architectural Design

KZ14 I er hannaður fyrir verkefni þar sem hátalarinn þarf að vera nánast ósýnilegur.

Hann hentar einstaklega vel í:

  • hótel
  • boutique retail
  • veitingastaði
  • lounge svæði
  • söfn
  • high-end residential
  • sérsmíðaðar innréttingar

Magnetic Grille

Framhliðin er varin með segulfestri grillhlíf sem auðvelt er að fjarlægja fyrir uppsetningu eða þjónustu án verkfæra.

Hannaður með subwoofer fyrir full-range kerfi

Lyzard KZ14 I er ætlaður til að vinna með: K-array Rumble Subwoofer eða K-array Truffle Subwoofer

ásamt K-array Kommander magnara til að ná fullri tíðnisvörun og full-range hljóðupplifun.

Dómar & Quotes

“The most ultra-compact line array in the K-array product range.”

“Clear audio reproduction and flawless intelligibility.”

“Perfect for projects requiring almost invisible audio integration.”

“Uncompromised audio performance with minimum residual noise.”

Af hverju að velja K-array?

Nánast ósýnileg hljóðlausn

KZ14 I er hannaður til að blandast inn í arkitektúr og innanhússhönnun án þess að skerða hljóðgæði.

Ótrúlegt hljóð miðað við stærð

Þrátt fyrir afar nett form skilar hann:

  • skýru tali
  • hreinni tónlist
  • jafnri dreifingu
  • mjög góðri intelligibility

Premium ítölsk hönnun

Unninn úr gegnheilum áli með hágæða áferð og framleiddur á Ítalíu samkvæmt ströngu gæðaeftirliti hjá K-array.

Fullkominn fyrir architectural audio

Sérstaklega vinsæll þar sem:

  • hátalarar mega ekki sjást
  • útlit skiptir miklu máli
  • discreet integration er lykilatriði

Niðurstaða

K-array Lyzard KZ14 I er einstök lausn fyrir þá sem vilja hágæða hljóð úr hátalara sem sést varla. Hann sameinar:

  • ultra-mini line-array hönnun
  • PAT® tækni
  • mjög víða og jafna dreifingu
  • premium efnisgæði
  • og einstaklega discreet integration

í lausn sem hentar fullkomlega fyrir architectural audio verkefni þar sem hönnun og hljóð þurfa að vinna saman.

KZ14 I sannar að stór hljóðupplifun þarf ekki stóran hátalara.

  • delivery Skilmálar
  • Afhending
Lýsing
The Lyzard-KZ14 I ultra-mini line array loudspeaker is the smallest member of K-array’s Lyzard mid-high loudspeaker range. Featuring an ultra-resistant 2.2 x 10 x 1.1 cm milled aluminium enclosure housing 4 x long-excursion neodymium magnet transducers for a total weight of just 59 g, the Lyzard-KZ14 I ensures uncompromised audio performance with minimum residual noise, despite its discreet dimensions. The form and quality of the Lyzard series make it the perfect solution for environments that require high-performance audio where decor and aesthetics cannot be compromised. With a vertical coverage of 40° and horizontal coverage of 140°, it is our smallest model to feature PAT array technology. With a frequency response from 500 Hz up to 18kHz, KZ14 I provides clear audio reproduction and flawless intelligibility at a peak SPL of 98 dB, an impressive performance for a miniature loudspeaker. To complete the full frequency range of your audio systems, Lyzard loudspeakers must be combined with one or more of the Truffle or Rumble subwoofers and driven by one of our Kommander amplifiers. Lyzard loudspeakers are available in semi-matte black or white as standard, or any RAL colour, as well as several premium finishes, on request. Polished aluminium, 24K gold, rose gold or antique gold plating are among the most luxurious finishes. The front of the loudspeaker cabinet is protected by a magnetic grille that can be removed with a small neodymium magnet knob, included in the package. This new feature makes the fixing point much faster to access, helping installers reduce set-up and maintenance times. The rear panel incorporates a small two-pole screw euro-block connector, so no specific connector is required, further streamlining the installation process. The Lyzard-KZ14 I is ideally suited for audio integrations in retail environments, small lounges and bars, home residences, hotels and museums, allowing venues to maintain their aesthetic whilst keeping listeners satisfied with high-quality sound. The main product models and codes are: KZ14 I black model / black recessed model KZ14W I white model / white recessed model KZ14X I customisable color (box + grille) / customisable recessed color (box + grille) All Lyzard-KZ14 I components are designed by the K-array R&D department, custom manufactured to our exacting standards and subject to our rigorous quality control system in Italy.

Lyzard I

Even more sleek

Design and Sound in Harmony

Introducing the Mark I Lyzard micro-loudspeaker range, where premium audio meets stunning design. Featuring an ultra-sleek, minimalist body crafted from precision-milled aluminum, Lyzard is the perfect choice for discreet installations in intimate environments. With two different lengths and exceptional mid-high-range performance, Lyzard offers a superior sound experience with minimal visual impact.
Maximum discretion The size of a chocolate bar, Lyzard speakers blend easily into modern or classic architecture without compromising the aesthetics or the sound, as the design of the speaker integrates naturally into any decor. For permanent installation, a hidden through-hole allows for more secure and theft-proof mounting. Easier connection is also attainable with a 2-pin Phoenix screw terminal designed to hide cables for maximum discreteness.

Recess your sound into plasterboard walls and suspended ceilings Lyzard is undoubtedly one of the thinnest loudspeakers in the world; a feature that designers use to their advantage. However, for applications where the loudspeakers have to completely disappear, the new two KZ1R I and KZ14R I models allow you to completely recess the body of the speaker into surfaces like plasterboard walls and suspended ceilings. A wide variety of colours and finishes enables the loudspeakers to blend into any environment.

The Power of Miniature

Say goodbye to conventional and ugly loudspeakers that draw unwanted attention, and embrace the discreet elegance of the Lyzard micro-loudspeaker range, the epitome of premium audio and stunning design, with an even sleeker miniaturized body crafted with exceptionally accurate aluminum millwork. With two lengths of 3.5cm or 10cm, these micro-loudspeakers are perfect for a variety of intimate environments such as retail stores, high-class restaurants, bars, and museums, as the essence of sound lies in being heard, not in being on display.

PAT Pure Array Technology

Next Generation Line Array Technology The “Pure Array Technology” (PAT) featured in the KZ14 I and KZ14R I models ensures maximum smooth, even coverage with no compromise in sound quality from the front of the space all the way to the back. This is ideal for hospitality environments, where PAT technology ensures background music can be heard at an appropriate level throughout the venue, without the risk of hotspots. Thanks to Pure Array Technology, the powerful sound reproduced by Lyzard-KZ14 I and KZ14R I is extremely natural and transparent and the perfect solution for applications where it is important for music to be present, but not overpowering.
ANY STYLE YOU WANT The Lyzard is offered in a semi-matte black or an elegant white finish and can be customized to match any RAL code. Premium brushed or polished stainless steel finishes give the products a chameleon-like ability to reflect surrounding surfaces and blend in with the background. Our 24K gold-plated aluminum is the most luxurious finish – ideal for prestigious design projects and upscale applications. Polished steel, rose and antique gold are the other three premium finishes available for Lyzard. Lyzards are custom manufactured to our exacting standards and subject to our rigorous quality control system in Italy.
Premium Finishes
Customizable Colors

Perfect Performance Lyzard’s electromagnetic components are miniaturised to suit the limited dimensions. Furthermore, they are designed to withstand high mechanical stress thanks to the choice of high-quality materials with unique thermal properties that protect the loudspeaker from the heat generated inside the unit. A well-made product ensures maximum longevity and superb sound performance that keeps going and going.

SNAP and UNSNAP THE GRILLE with a single MOVE Experience the ultimate ease of installation with our magnetic grille loudspeakers. Simply snap and unsnap the grille with a single move, allowing for quick access and maintenance. The sleek and minimalist aesthetic of our magnetic grilles will also enhance the look of any room or environment. A hidden through-hole allows for more secure and theft-proof mounting.

Higher impedance, fewer amplifiers

The 16Ω impedance allows you to drive more Lyzard loudspeakers from the same amplifier channel. This helps deliver even audio coverage using fewer amplifiers, saving time and money.

The Perfect Companion

One of the biggest challenges was to make ultra-miniaturized 0.5” transducers that produce high intelligibility and coherent coverage with crystal clear audio. In order to extend the frequency range to 35 Hz, Lyzard should ALWAYS be combined with the Rumble or Truffle subwoofer series, in any application.

@

Material that lasts

Milled from solid aluminium bars, the Lyzard family of loudspeakers utilises the most durable and resistant materials to protect and conserve the system regardless of the elements, rendering a K-array installation both reliable and long-lasting.

Preferred Customer Applications

Restaurants and Cafes
Museums and Exhibitions
Retail
Broadcast and Studios
Hotels and Resorts
Boardrooms and Conference Rooms
Residential
