SVS Ultra Evolution Pinnacle Gólfhátalarar í Gloss Black (PAR)
SVS Ultra Evolution Pinnacle Gólfhátalarar
SVS Ultra Evolution Pinnacle eru flaggskip gólfhátalarar í Ultra Evolution línunni og skila alvöru reference-level hljómi sem stenst samanburð við mun dýrari high-end hátalara. Þeir eru hannaðir fyrir þá sem vilja hámarks dýnamík, djúpan bassa og ótrúlega nákvæmni – bæði fyrir tónlist og heimabíó.
Þetta er toppmódelið frá SVS og sameinar gríðarlegt afl og finesse í einum hátalara.
Helstu eiginleikar & tækni
- 3-way flaggskip hönnun með full-range frammistöðu
- 1” diamond-coated tweeter fyrir ultra skýran og opinn diskant
- Dual 5.25” midrange driverar fyrir nákvæma rödd og smáatriði
- 4 x 8” bassakeilur fyrir djúpan og kraftmikinn bass
- Time-aligned cabinet fyrir betra imaging og phase coherence
- Bass-reflex hönnun með mikilli loftfærslu og dýpt
- Bi-wire / bi-amp tengingar
Tæknilegar upplýsingar (Specs)
- Tegund: 3-way gólfhátalari
- Driver uppsetning:
- Tweeter: 1”
- Midrange: 2 x 5.25”
- Woofer: 4 x 8”
- Tíðnisvið: niður í ~24 Hz (-3 dB)
- Næmni: ~88 dB
- Impedance: ~6 ohm
- Ráðlagt magnaraafl: 20-300w RMS (hagnast á kraftmiklum magnara)
- Stærð: ~50” á hæð / ~96 lbs hver
Verðlaun & viðurkenningar
- ???? Taldir “game changer” í sínum verðflokki
- ???? Víða nefndir sem “punching above their weight” í high-end flokki
- ???? Taldir keppa við hátalara sem kosta margfalt meira
- ???? Hluti af Ultra Evolution línu sem setur ný viðmið hjá SVS
Umsagnir & quotes
“clarity, drive, detail, and body”
“powerful and prodigious bass output”
“game changer… true hi-fi bargain”
“punching above their weight”
Af hverju að velja Ultra Evolution Pinnacle?
Pinnacle eru fyrir þá sem vilja alvöru high-end upplifun.
- Djúpur bassi sem nær niður í subwoofer territory
- Gríðarleg dýnamík og „live“ tilfinning
- Nákvæm imaging og stórt soundstage
- Hentar bæði stereo og full-scale heimabíó
Þeir henta sérstaklega vel fyrir:
- Stór rými
- High-end stereo kerfi
- Heimabíó þar sem front hátalarar þurfa að bera allt kerfið
Niðurstaða:
Flaggskip hátalarar sem skila gríðarlegum krafti, djúpum bassa og high-end nákvæmni – einn mest „overperforming“ hátalari í sínum verðflokki.
1.099.995 kr.
Í boði sem sérpöntun
- Skilmálar
- Afhending
Lýsing
Inspired Design, Reference Performance.
Acoustically Centered Time Alignment Cabinet Architecture
Curved front baffle aligns all drivers on a vertical plane ensuring sound from each driver reaches your ears at the exact same instant.
Maximizes phase coherence for more convincing and immersive soundstage with pinpoint accuracy and imaging.
Midrange drivers and woofers positioned above and below the tweeter allow for seamless crossover blending to create an idealized “point-source” where sound emanates from single point in front of the speaker to optimize dispersion characteristics.
Diamond Coated Aluminum Dome Tweeter
Through a process called Vapor Deposition, a layer of diamond carbon is applied to the aluminum dome tweeters to vastly improve rigidity and acoustic properties.
This breakthrough in material science raises the frequency response well beyond the limits of human hearing resulting in effortless, airy, and unveiled highs with no measurable distortion.
The diamond coating also pushes low frequency extension of the tweeter deeper for more seamless blending with the midrange.
Organic cell lattice tweeter diffuser protects the dome and employs semi-random pattern derived from organic cell structures to improve off-axis response and maximize listening sweet spot.
Quad 8” Glass Fiber Woofers in Force-Balanced Array
Dual opposing active woofers on the top and bottom of the cabinet render effortless low frequency response while addressing room modes with deep, authoritative bass is evenly spread throughout the listening area.
Mechanical energy from each front-firing woofer is equaled inside the cabinet by the rear-firing woofer eliminating mechanical coloration for pure, accurate low frequencies at any playback level.
Dual 5.25″ Glass Fiber Composite Midrange Drivers
Superb stiffness to mass ratio on dual driver array conveys stunning dynamics with flawless tonal accuracy.
Unrelenting Attention to Detail
Separate, acoustically tuned internal chambers for the woofers and midrange drivers optimize separation and eliminate any potential for cabinet resonances, resulting in pristine sound across the frequency spectrum.
Uncompromising 3-Way crossover with premium components seamlessly blends driver output. Subtle musical details are rendered with breathtaking clarity, while massive dynamics radiate with weight and control from the highest to lowest octaves.
Precision-cast aluminum-alloy baskets ensure precise alignment of critical components and maximize thermal dissipation.
Neodymium magnetic grilles
Stunning Piano Gloss Black, Piano Gloss White, and Black Oak Veneer Finish
Frequency Response / Acoustic Data:
- Frequency Response: 24Hz to 40kHz (+/-3 dB)
- Nominal Impedance: 6 ohms
- Sensitivity: 88dB (2.83V @ 1 meter full-space, 300Hz – 3kHz)
- Recommended amplifier power: 20 – 300 watts
Speaker Specs:
- Floor-standing Tower Loudspeaker
- Piano gloss black, piano gloss white, real black oak veneer finish options
- Dual gold-plated 5-way binding posts
- Dual 3” wide-flared rear-firing ports

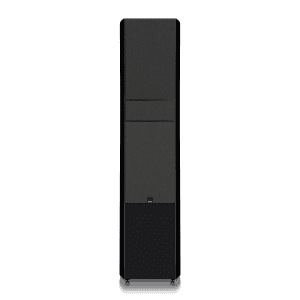

- Cloth grille with magnetic retention system
- Elastomer screw-in feet – adjustable for level
- Spiked metal screw-in feet included – adjustable for level
- Cabinet Dimensions: 49.61” (H) x 11.81” (W) x 18.14” (D) / 1260mm (H) x 300mm (W) x 460.7mm (D)
- Overall Dimensions: 50.2” (H) x 11.81” (W) x 18.14” (D) / 1275mm (H) x 300mm (W) x 460.7mm (D) (includes grille, feet, and binding posts)
- Shipped Dimensions: 54.6” (H) x 16.3” (W) x 22.6” (D) / 1387mm (H) x 415mm (W) x 575mm (D)
- Weight Packaged: 110.8 pounds / 50.3 kgs
- Weight Unboxed: 96.7 pounds / 43.9 kgs
Driver Specs:
1” Diamond Coated Tweeter
- FEA-optimized Organic Cell Lattice Diffuser for airy, unveiled highs and pristine clarity.
- Cutting-edge vapor-deposition grows a hyper-rigid diamond-like coating on an aircraft-grade aluminum dome, pushing high-frequency extension further beyond human hearing, and delivering best-in-class fidelity, linearity, and transient response.
- Silver tinsel leads for optimal signal transfer and power handling.
Dual 5.25″ Midrange Drivers
- Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond passband.
- Precision-cast aluminum-alloy baskets ensure precise alignment of critical components and maximize thermal dissipation.
- Vented Kapton voice coil former is exceptionally lightweight for excellent dynamics and transient response.
Quad 8″ Woofers:
- Long stroke motor and suspension for high output.
- Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond passband.
- Precision-cast aluminum alloy baskets ensure precise alignment of critical components and maximize thermal dissipation.
- Vented aluminum voice coil former to maximize thermal control while minimizing air compression artifacts at high drive levels.
Crossover & Cabinet Specs:
Crossover:
- 3-way crossover with premium-grade capacitors, inductors, resistors and heavy-trace printed circuit board
- Tweeter-to-Midrange crossover: 1.8 kHz
- Midrange-to-woofer crossover: 140 Hz
Cabinet:
- Acoustically Centered Time Alignment architecture.
- Acoustically-centered architecture orients the mid-range and woofer arrays in rotational-symmetry around the tweeter, ensuring that low, mid, and high-frequencies emanate from the same effective point in space, creating a coherent, integrated, faithful acoustic image.
- Time-aligned cabinet geometry introduces microsecond-level time delays between the drivers, ensuring that the effective-acoustic-center of each driver is equidistant from the listener. The result is improved linearity and directionality throughout the crossover frequencies, and a more accurate soundstage.
- Quad 8” woofers in Force-Balanced Opposed Array energize any room with deep, accurate, evenly distributed bass, while contributing a net-zero vibration force to the cabinet and other components.
- Dual 5.25” midrange drivers share a dedicated acoustic-suspension enclosure, symmetrical around the tweeter.
- Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improve on-axis and off-axis high-frequency response
- Extra-thick 1” (25mm) driver baffles ensure a rigid, resonance-free mounting for all drivers.
- FEA-optimized ¾” (18mm) cabinet construction, extensive bracing, and acoustic insulation eliminate acoustic and structural resonances, ensuring an inert enclosure and an uncolored response, even at the highest drive levels.
